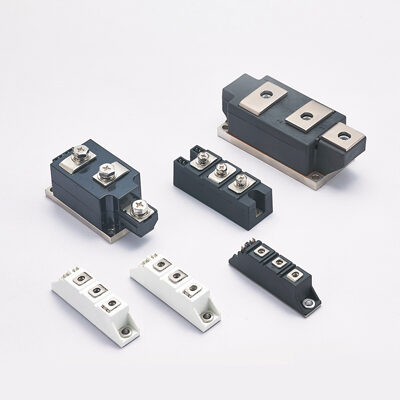

Single Diode Modules

Advanced Filter

Type	VRRM [V] VRSM=VRRM+100V	IFAVM [A] @ Tc=100°C 180° Sine	IFSM [A] @ 10ms Tjmax	Êƒ iÂ²t [AÂ²S] @ 10ms Tjmax	VF / IF [V / A] @ 25Â°C	VF(TO) [V] @ Tjmax	r FT [mÎ©] @ Tjmax	RthJC [Â°C / W] @ 180Â° Sine per chip	RthJC [Â°C / W] per chip	Tjmax [Â°C]	Outline Drg.
20mm Solder Contact Base Plate
MS DZ104S	200 --- 1800	104	2500	31250	1.40 / 300	0.85	1.5	0.39	0.1	150	M14
34mm Solder Contact Base Plate
MS DZ162S	200 --- 1800	160	5000	125000	1.50 / 500	0.85	1.2	0.18	0.1	135	M15
50mm Pressure Contact Base Plate
MS DZ350K	1200 --- 1800	350	11000	605000	1.28 / 1000	0.75	0.4	0.13	0.04	150	M12
MS DZ540K	2000 --- 2600	540	14000	980000	1.68 / 2200	0.78	0.31	0.078	0.02	150	M12
MS DZ600K	1200 --- 1800	600	19000	1805000	1.45 / 2200	0.75	0.215	0.078	0.02	150	M12
MS DZ723K	200 --- 1800	723	21000	2205000	1.40 /2200	0.81	0.252	0.055	0.01	150	M12
70mm Pressure Contact Base Plate
MS DZ1080K	2000 --- 2800	1087	30000	4500000	1.20 / 1800	0.8	0.11	0.042	0.015	150	M11
MS DZ1100K	600 --- 1800	1100	35000	6125000	1.11 / 3000	0.75	0.073	0.048	0.015	150	M11
MS DZ1280K	2000 --- 2200	1280	40000	8000000	1.30 / 3140	0.8	0.11	0.042	0.01	160	M11
MS DZ1281K	2000 --- 2200	1280	40000	8000000	1.30 / 3140	0.8	0.11	0.042	0.01	160	M11
