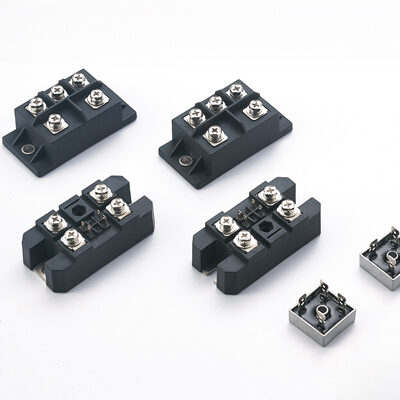

| Part number | VDRM, VRRM [V] VRSM=VRRM+100V | ID / TC [A / °C ] | IFSM [kA] @ 10ms 25°C | ʃ i²t [A²S] @ 10ms 25°C | VF / IF [V / A] 25°C | VF(FO) [V] @ Tjmax | r T [mΩ] @ Tjmax | RthJC [°C / W] @ 180° Sine per arm | RthJC [°C / W] per bridge | Tjmax [°C] | Outline Drg. | Download PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MDQ35 | 200-1200 | 35 / 85 | 400 | 800 | 1.35 / 50 | 0.85 | 10 | 2.8 | 0.4 | 150 | B3 |  |
| MDQ50 | 200-1600 | 50 / 55 | 500 | 1250 | 1.20 / 50 | 0.75 | 8 | 3.05 | 1.0 | 150 | B3 | |
| MDQ60 | 200-1600 | 50 / 110 | 500 | 1250 | 1.50 / 75 | 0.80 | 8 | 1.19 | 0.05 | 150 | B4 | |
| MDQ80 | 200-1600 | 80 / 85 | 750 | 2812 | 1.50 / 125 | 0.80 | 6 | 1.16 | 0.05 | 150 | B4 | |
| MDQ100 | 200-1600 | 110 / 85 | 1150 | 6612 | 1.35 / 150 | 0.85 | 4 | 0.80 | 0.05 | 150 | B4 | |
