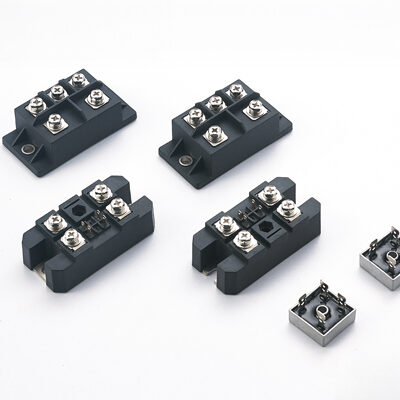

Three Phase Diode Bridges

Advanced Filter

Part number	VRRM [V] VRSM=VRRM+100V	ID / TC [A / °C ]	IFSM [kA] @ 10ms 25°C	ʃ i²t [A²S] @ 10ms 25°C	VF / IF [V / A] 25°C	VF(FO) [V] @ Tjmax	r T [mΩ] @ Tjmax	RthJC [°C / W] @ 180° Sine per arm	RthJC [°C / W] per bridge	Tjmax [°C]	Outline Drg.
MDS60	800-1600	60 / 100	800	3200	1.26 / 60	0.90	6	1.2	0.05	130	B1
MDS80	1400-1600	80 / 100	1000	5000	1.40 / 100	0.85	6	0.86	0.05	150	B1
MDS100	800-1600	110 / 85	1150	6612	1.30 / 100	0.85	5	0.85	0.05	130	B1
