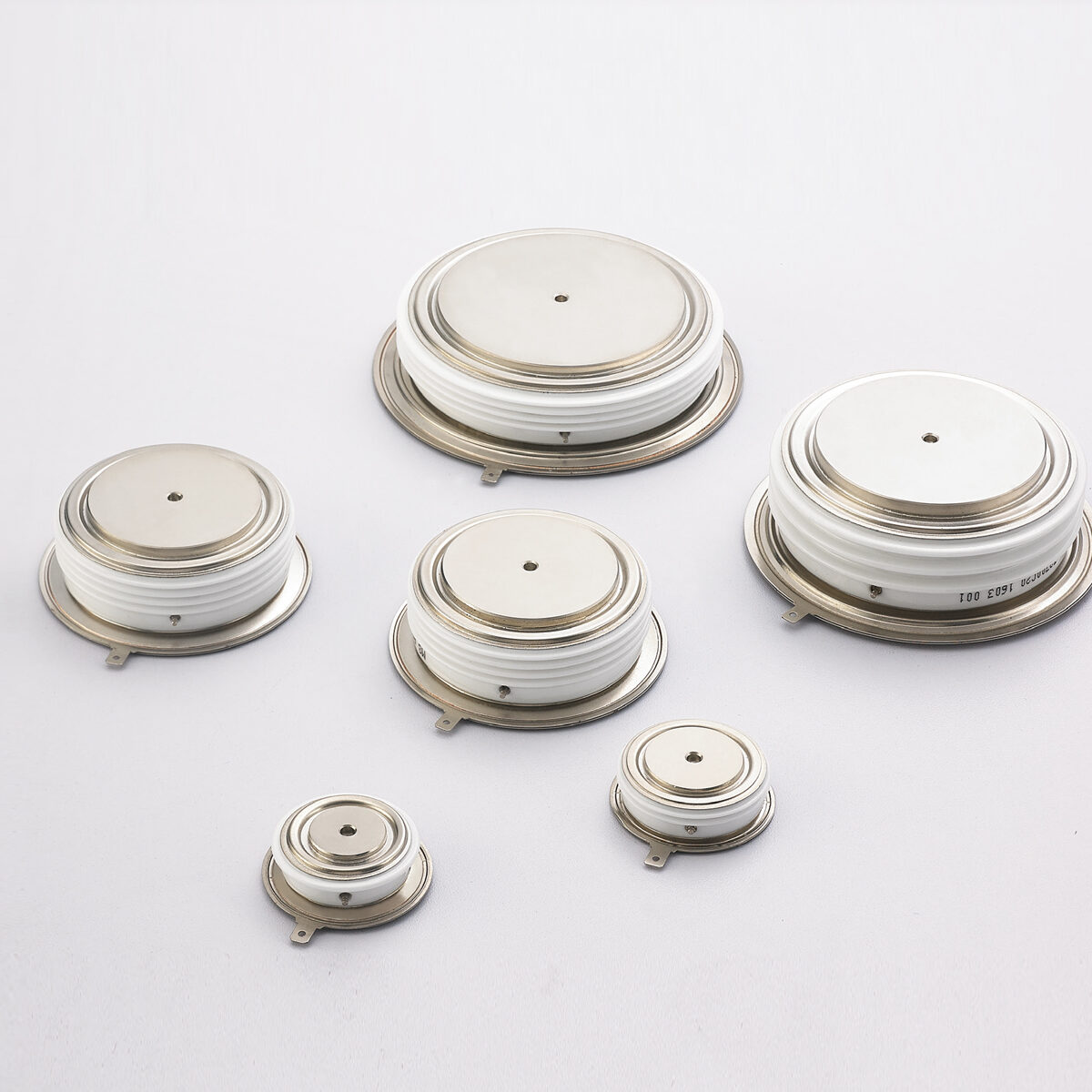

Phase Control Thyristor – Stud / Flat Base

Advanced Filter

Type	VDRM, VRRM [V] VDSM=VDRM VRSM=VRRM+100V	IDRM, IRRM [mA] Tjmax	ITAVM [A] @ Tc=85°C 180° Sine	ITSM [A] @ 10ms Tjmax	ʃ i²t [A²S] @ 10ms Tjmax	VT / IT [V / A] Tjmax	VT(TO) [V] @ Tjmax	r T [mΩ] @ Tjmax	Igt [mA]	RthJC [°C / W] @ 180° Sine	Tjmax [°C]	Outline Drg.
MS T30S	200-1600	10	30	500	1250	1.69 / 100	0.95	6.40	100	0.93	125	ST01
MS T31S	200-1600	10	30	500	1250	1.69 / 100	0.95	6.40	100	0.93	125	ST02
MS T45S	200-1600	10	45	900	4050	1.71 / 140	1.00	5.00	150	0.56	125	ST03
MS T46S	200-1600	10	45	900	4050	1.71 / 140	1.00	5.00	150	0.56	125	ST04
MS T55S	200-1600	10	55	1000	5000	1.95 / 200	0.95	4.70	150	0.45	125	ST03
MS T56S	200-1600	10	55	1000	5000	1.95 / 200	0.95	4.70	150	0.45	125	ST04
MS T85S	200-1600	30	85	1250	7812	1.98 / 270	1.20	2.60	150	0.27	125	ST05
MS T100S	200-1600	25	100	1800	16200	2.00 / 392	1.20	1.90	150	0.24	125	ST05
MS T122S	200-1600	25	121	2200	24200	1.80 / 470	0.90	1.80	150	0.23	125	ST05
MS T174S	200-1600	50	175	4000	80000	1.75 / 550	1.03	1.30	200	0.14	125	ST06
MS T175S	200-1600	50	175	4600	105800	1.75 / 550	1.03	1.30	200	0.14	125	ST07
MS T250S	200-1600	50	250	6000	180000	1.70 / 785	0.92	0.87	200	0.11	125	ST07
MS T285S	200-800	50	285	7850	308000	1.35 / 900	0.88	0.47	200	0.115	125	ST07
MS T350S	200-1600	80	350	8000	320000	1.65 / 1100	0.85	0.50	200	0.088	125	ST08
MS T351S	200-1600	80	350	8000	320000	1.65 / 1100	0.85	0.50	200	0.088	125	ST09
MS T356S	200-1800	80	350	8000	320000	1.65 / 1100	0.85	0.50	200	0.088	125	ST09
MS T415S	200-1600	80	415	12000	720000	1.60 / 1600	0.90	0.35	200	0.076	125	ST08
