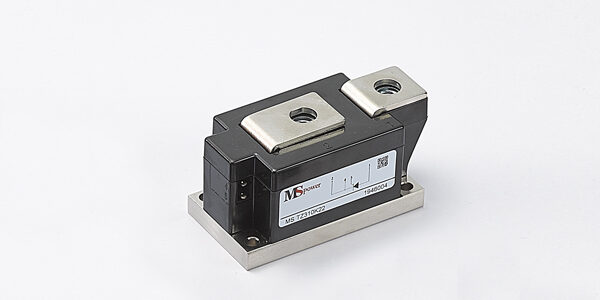

Single Thyristor Modules

Advanced Filter

Type	VDSM, VDRM [V] VDSM=VDRM VRSM=VRRM+100V	ITAVM [A] @ Tc=85Â°C 180Â° Sine	ITSM [A] @ 10ms Tjmax	Êƒ iÂ²t [AÂ²S] @ 10ms Tjmax	VT / IT [V / A] @ 125Â°C	VT(TO) [V] @ Tjmax	r T [mÎ©] @ Tjmax	RthJC [Â°C / W] @ 180Â° Sine per chip	RthJC [Â°C / W] per chip	Tjmax [Â°C]	Outline Drg.
50mm Pressure Contact Base Plate
MS TZ150K	2000 --- 2600	150	4000	80000	2.60 / 600	1.2	2.3	0.13	0.04	125	M12
MS TZ310K	2000 --- 2600	310	8000	320000	2.22 / 1300	1	0.86	0.078	0.02	125	M12
MS TZ400K	200 --- 1800	392	12000	720000	1.64 / 2400	0.92	0.3	0.095	0.02	130	M12
MS TZ430	1800 - 2400	430	12000	720000	1.78 / 1500	0.95	0.45	0.065	0.02	125	M12
MS TZ560	200 - 1800	560	14500	1051000	1.20 / 1000	0.8	0.38	0.072	0.024	140	M12
70mm Pressure Contact Base Plate
MS TZ800K	400 - 1800	800	32000	5120000	1.58 / 3000	0.83	0.25	0.042	0.01	130	M09
MS TZ740K	2000 - 2200	819	26500	3511000	1.51 / 3000	0.82	0.17	0.042	0.015	125	M09
