Part number	VRRM [V] VDSM=VDRM VRSM=VRRM+100V	IFAVM [A] @ Tc=100°C 180° Sine	ITSM [A] @ 10ms Tjmax	ʃ i²t [A²S] @ 10ms Tjmax	VF / IF [V / A] @ 25°C	VF(TO) [V] @ Tjmax	r T [mΩ] @ Tjmax	RthJC [°C / W] @ 180° Sine per chip	RthJC [°C / W] per chip	Tjmax [°C]	Outline Drg.
20mm Solder Contact Base Plate
MS DD25	200-1800	25	500	1250	1.40 / 80	0.85	6.00	1.6	0.2	150	M01
MS DD55	200-1800	55	1150	6612	1.60 / 175	0.85	4.00	0.65	0.2	150	M01
MS DD70	200-1800	70	1190	7080	1.48 / 200	0.80	3.0	0.51	0.2	150	M01
MS DD95	200-1800	95	1700	14450	1.45 / 300	0.85	1.90	0.4	0.2	150	M01
MS DD104	200-1800	104	2000	20000	1.40 / 300	0.85	1.50	0.39	0.2	150	M01
MS DD120	200-1800	120	2050	21000	1.44 / 350	0.85	1.40	0.33	0.2	150	M01
34mm Solder Contact Base Plate
MS DD140	200-1800	140	3200	51200	1.45 / 300	0.90	1.50	0.25	0.1	150	M02
MS DD170	200-1800	170	5200	135200	1.44 / 400	0.85	1.30	0.21	0.1	150	M02
MS DD190	200-1800	190	5600	156800	1.32 / 500	0.85	0.80	0.21	0.1	150	M02
MS DD280	200-1800	220	2500	31250	1.60 / 880	0.80	0.98	0.17	0.1	150	M02
50mm Pressure Contact Base Plate
MS DD250	3000-3600	245	5000	125000	2.0 / 785	0.90	1.57	0.11	0.04	150	M03
MS DD260	200-1800	260	10000	500000	1.40 / 800	0.70	0.68	0.17	0.04	150	M03
MS DD285	400-800	285	8300	605000	1.15 / 800	0.75	0.40	0.17	0.04	150	M03
MS DD261	600-2400	318	80000	320000	1.35 / 1500	0.71	0.42	0.14	0.06	150	M03
MS DD320	600-2000	320	8000	320000	1.35 / 1500	0.71	0.42	0.14	0.06	150	M03
MS DD321	2000-2800	358	8500	361000	1.40 / 785	0.85	0.45	0.11	0.04	150	M03
MS DD350	200-1800	350	11000	605000	1.35 / 1000	0.75	0.40	0.13	0.04	150	M03
MS DD360	2000-2200	360	110000	605000	1.40 / 1500	0.75	0.40	0.125	0.04	150	M03
MS DD380	200-1800	380	11500	661000	1.40 / 1500	0.75	0.32	0.125	0.04	150	M03
MS DD381	2000-2200	381	11500	661000	1.40 / 1500	0.75	0.32	0.125	0.04	150	M03
60mm Pressure Contact Base Plate
MS DD480	4000-4500	410	9000	405000	2.19 / 1600	0.89	0.815	0.07	0.02	150	M04
MS DD450	3200-4000	498	15050	1132000	1.90 / 1800	0.85	0.55	0.065	0.02	150	M04
MS DD500	200-1800	500	14000	980000	1.35 / 1500	0.84	0.24	0.088	0.03	150	M04
MS DD515	2800-3600	515	13000	845000	1.60 / 1256	0.80	0.50	0.068	0.02	150	M04
MS DD600	200-1800	600	19000	1805000	1.35 / 1880	0.75	0.215	0.078	0.02	150	M04
MS DD601	800-2600	660	29000	4205000	1.18 / 1500	0.914	0.145	0.065	0.02	150	M04
MS DD810	200-1800	680	19000	1805000	1.24 / 2000	0.78	0.23	0.062	0.02	150	M04
MS DD700	2000-2200	700	19000	1805000	1.36 / 2200	0.78	0.185	0.065	0.02	150	M04
MS DD710	200-2000	710	22000	2420000	1.30 / 2200	0.75	0.145	0.069	0.02	150	M04
70mm Pressure Contact Base Plate
MS DZ1100	600-1800	1100	35000	6125000	1.11 / 3000	0.75	0.073	0.048	0.015	150	M11

Diode – Diode Module

More Product

Single Thyristor Modules

Single Diode Modules

Thyristor – Thyristor Modules

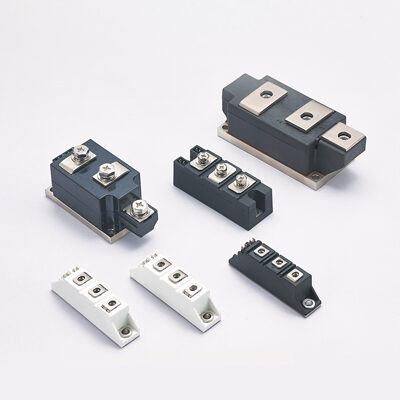

Thyristor – Diode Modules

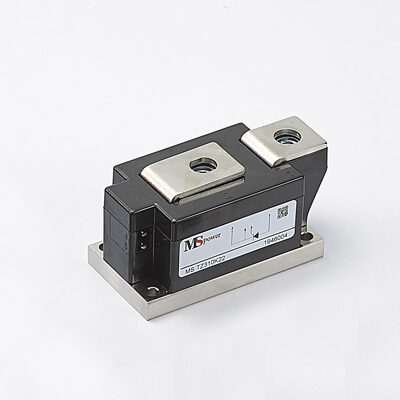

Single Thyristor / Diode Modules
