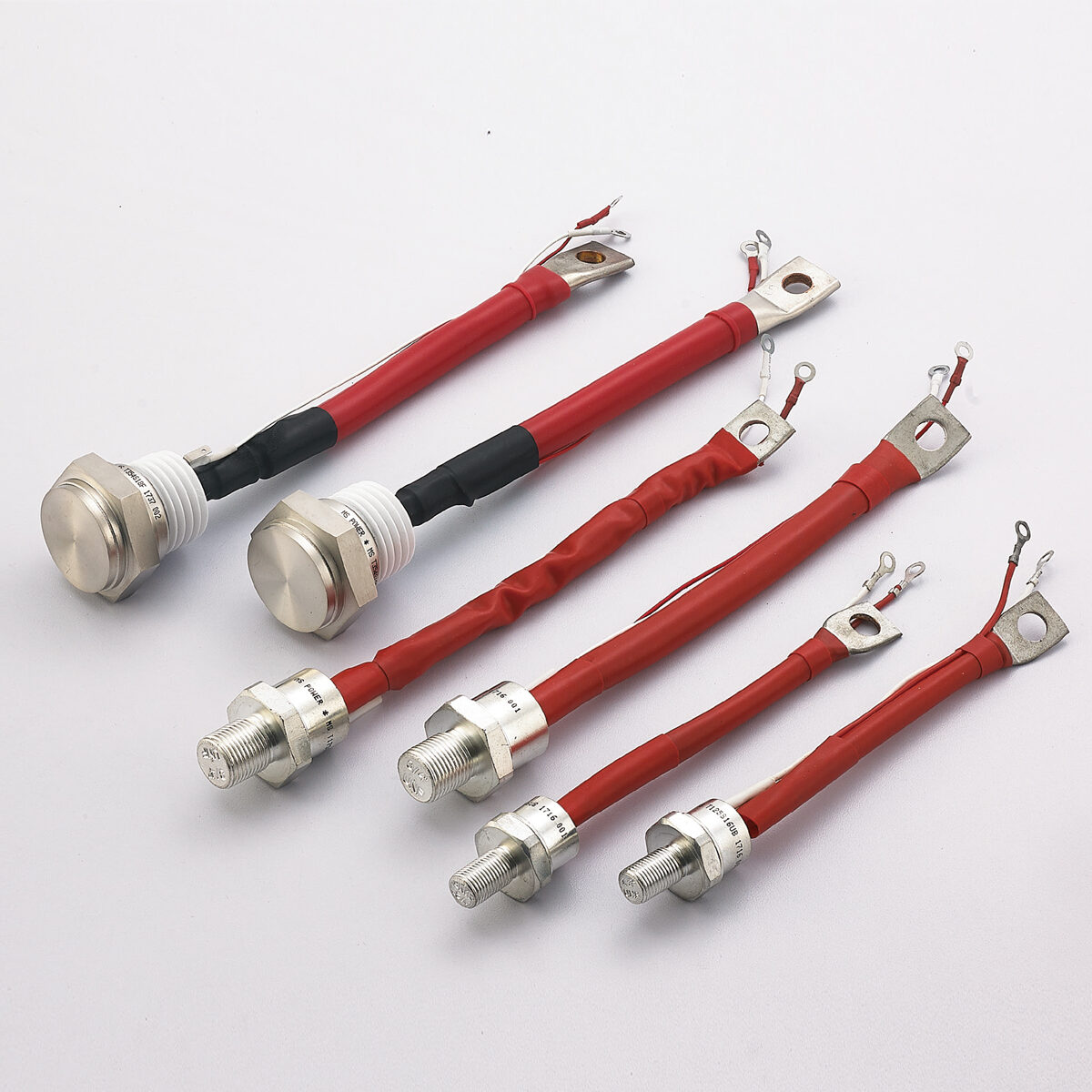

| Type | VDRM, VRRM [V] VDSM=VDRM VRSM=VRRM+100V | ITAVM [A] @ Tc=70°C 180° Sine | ITSM [kA] @ 10ms Tjmax | ʃ i²t [A²S×10³] @ 10ms Tjmax | VT / IT [V / A] Tjmax | VT(TO) [V] @ Tjmax | r T [mΩ] @ Tjmax | Tq [μsec] @ Tjmax | (di/dt) crit [A / μs] @ Tjmax | RthJC [°C / W] @ 180° Sine | Tjmax [°C] | Outline Drg. | Download PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS TF700C | 2000-2200 | 700 | 10 | 500 | 2.30 / 1978 | 1.200 | 0.650 | 30 | 1000 | 0.034 | 125 | CT04 |  |
| MS TF810C | 800-1200 | 810 | 9.35 | 437 | 2.40 / 1400 | 1.900 | 0.357 | 15 | 1000 | 0.026 | 125 | CT04 | |
| MS TF1110C | 1400-2000 | 1110 | 18.5 | 1711 | 1.90 / 2000 | 1.207 | 0.342 | 50-100 | 250 | 0.023 | 125 | CT06 | |
| MS TF1018C | 1200-2000 | 1018 | 15 | 1125 | 2.15 / 2000 | 1.380 | 0.385 | 50 | 1000 | 0.020 | 125 | CT06 | |
| MS TF1305C | 800-1200 | 1305 | 20.0 | 2000 | 2.26 / 3000 | 1.540 | 0.240 | 20-50 | 1200 | 0.018 | 125 | CT06 | |
| MS TF1275C | 1200-2100 | 1275 | 17.5 | 1531 | 2.00 / 2000 | 1.202 | 0.340 | 50-60 | 250 | 0.019 | 125 | CT06 | |
| MS TF1290C | 800-1200 | 1290 | 20.0 | 2000 | 2.02 / 2000 | 1.450 | 0.285 | 15 | 1000 | 0.018 | 125 | CT06 | |
| MS TF1448C | 1800-2000 | 1448 | 17.0 | 1445 | 1.80 / 2000 | 1.300 | 0.250 | 40-70 | 1000 | 0.017 | 125 | CT06 | |
| MS TF2100C | 1400-2000 | 2100 | 33.0 | 5445 | 2.04 / 2000 | 1.271 | 0.255 | 60-100 | 300 | 0.010 | 125 | CT11 | |
| MS TF2600C | 2000-2800 | 2600 | 34.1 | 5814 | 2.55 / 5700 | 1.504 | 0.174 | 80-100 | 1000 | 0.008 | 125 | CT11 | |
| MS TF2750C | 2000-2500 | 2750 | 37.2 | 6919 | 2.00 / 4000 | 1.308 | 0.170 | 50-70 | 1000 | 0.008 | 125 | CT11 | |
| MSTF2825C | 2000-2500 | 2825 | 55.0 | 15125 | 2.45 / 5000 | 1.581 | 0.171 | 40-100 | 500 | 0.007 | 125 | CT13 | |
